CX-S500 is a Xiaomi Mi Box Mini Clone with Amlogic S805 Processor and a USB Port

Earlier this year I reviewed Xiaomi Mi Box Mini, and so far this year it’s one of my most popular blog posts despite being basically usable for non Chinese speakers, and lacking a USB port. A Chinese company decided it might be a good idea to design an Android mini PC lookalike, but powered by Amlogic S805, while also adding a much needed USB port.

CX-S550

C-S500 specifications:

  • SoC – Amlogic S805 quad core ARM Cortex A5 @ 1.5GHz with quad core Mali-450MP GPU
  • System Memory – 1 GB RAM
  • Storage – 8 GB NAND flash
  • Connectivity – 802.11 b/g/n Wi-Fi (Realtek RTL8723) , and Bluetooth
  • Video & Audio Output – HDMI
  • USB – 1x USB 2.0 port
  • Power Supply – Integrated into device. Probably 100-240V input (TBC)
  • Dimensions – TBD (Specs listed as 208 x 83.05 x 22 mm, but clearly wrong)
  • Weight – N/A

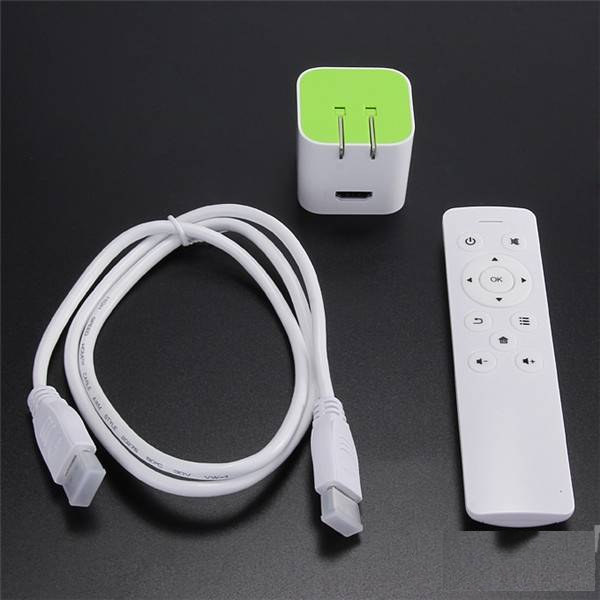

The company (Sunchip?) did not only copied the box design, but also the HDMI cable and remote control style.

CX-S500

The device runs Android 4.4, and the user interface looks similar to the one in other Amlogic S805 based TV boxes such as MXQ-S85, and available in English and other languages.

CX-S500 can be purchased for $45 and up (including shipping) on websites such as Geekbuying and Banggood.

Via AndroidPC.es

Share this:

Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress

ROCK 5 ITX RK3588 mini-ITX motherboard
Subscribe
Notify of
guest
The comment form collects your name, email and content to allow us keep track of the comments placed on the website. Please read and accept our website Terms and Privacy Policy to post a comment.
6 Comments
oldest
newest
TC
TC
9 years ago

i hope they make an eu plug version too

Adem
Adem
9 years ago

is the hardware any good compared to the mini mi box like this does not have dual band wifi.

Sander
Sander
9 years ago

So the clone (45 USD) is more expensive than the original (42 USD)?

Marius Cirsta
9 years ago

@Sander
Yup, I guess it’s hard to beat Xiaomi pricing… but this clone might come down in price. Also it’s got that USB that might make the difference for some, I wouldn’t buy one without an USB port.

Adem
Adem
9 years ago

If there was a custom rom with proper Android play store for the mini mi I think it would be better then the s805

hoanhdinh86
hoanhdinh86
9 years ago

What’s Chinese name? I didn’t find it in taobao
