How to Modify HDMI Output Parameters in Linux for ODROID-XU3 (Lite) Development Board

Good news, I’ve finally managed to make HDMI output in my ODROID-XU3 Lite development board work with the Ubuntu image after some more tweaking. So ODROID XU3 Lite Ubuntu review is coming in the next few days. But first, I’ll explain the few steps I went through, in case others experience a similar issue.

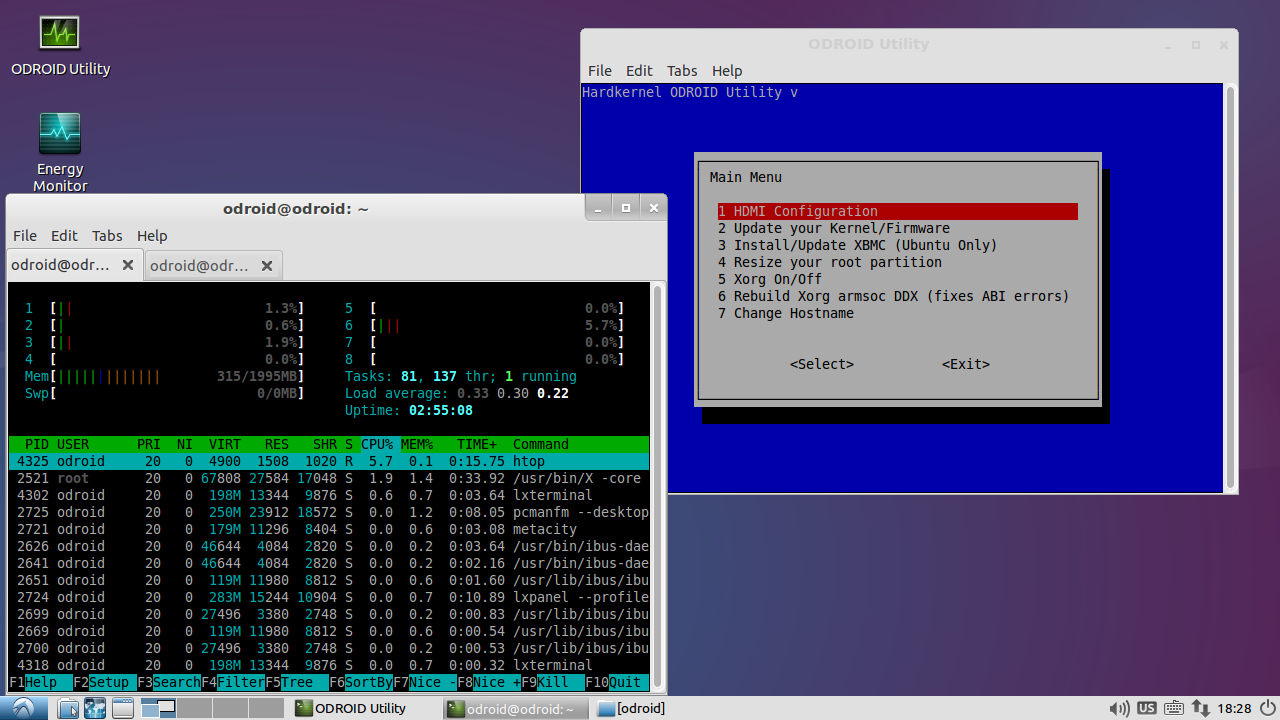

Lubuntu Screenshot in ODROID-XU3 Lite (Click for Original Size)

I downloaded, extracted, and flashed the latest Ubuntu image to a micro SD card with dd to give another try at running Ubuntu on my board, but no luck, I still got that black screen, albeit the system boots properly, as I got the command line using the serial console.

During my Android review of ODROID-XU3 Lite, I noticed the system would always revert back to 720p60 video output, and HDMI output settings can be selected in /media/boot/boot.ini with the following content:

ODROIDXU-UBOOT-CONFIG

# U-Boot Parameters
setenv initrd_high "0xffffffff"
setenv fdt_high "0xffffffff"

# Mac address configuration
setenv macaddr "00:1e:06:61:7a:39"

#-------------------------------------------------------------------------------
# Basic Ubuntu Setup. Don't touch unless you know what you are doing.
# --------------------------------
setenv bootrootfs "console=tty1 console=ttySAC2,115200n8 root=UUID=e139ce78-984"

# boot commands
setenv bootcmd "fatload mmc 0:1 0x40008000 zImage; fatload mmc 0:1 0x42000000 u"

# --- Screen Configuration for HDMI --- #
# ---------------------------------------
# Uncomment only ONE line! Leave all commented for automatic selection.
# Uncomment only the setenv line!
# ---------------------------------------
# ODROID-VU forced resolution
# setenv videoconfig "video=HDMI-A-1:1280x800@60"
# -----------------------------------------------
# 1920x1080 (1080P) with monitor provided EDID information. (1080p-edid)
# setenv videoconfig "video=HDMI-A-1:1920x1080@60"
# -----------------------------------------------
# 1920x1080 (1080P) without monitor data using generic information (1080p-noedi)
# setenv videoconfig "drm_kms_helper.edid_firmware=edid/1920x1080.bin"
# -----------------------------------------------
# 1280x720 (720P) with monitor provided EDID information. (720p-edid)
# setenv videoconfig "video=HDMI-A-1:1280x720@60"
# -----------------------------------------------
# 1280x720 (720P) without monitor data using generic information (720p-noedid)
# setenv videoconfig "drm_kms_helper.edid_firmware=edid/1280x720.bin" <strong>          </strong>
# -----------------------------------------------
# 1024x768 without monitor data using generic information
# setenv videoconfig "drm_kms_helper.edid_firmware=edid/1024x768.bin"


# final boot args
setenv bootargs "${bootrootfs} ${videoconfig} smsc95xx.macaddr=${macaddr}"
# drm.debug=0xff
# Boot the board
boot

ODROIDXU-UBOOT-CONFIG

# U-Boot Parameters

setenv initrd_high "0xffffffff"

setenv fdt_high "0xffffffff"

# Mac address configuration

setenv macaddr "00:1e:06:61:7a:39"

#-------------------------------------------------------------------------------

# Basic Ubuntu Setup. Don't touch unless you know what you are doing.

# --------------------------------

setenv bootrootfs "console=tty1 console=ttySAC2,115200n8 root=UUID=e139ce78-984"

# boot commands

setenv bootcmd "fatload mmc 0:1 0x40008000 zImage; fatload mmc 0:1 0x42000000 u"

# --- Screen Configuration for HDMI --- #

# ---------------------------------------

# Uncomment only ONE line! Leave all commented for automatic selection.

# Uncomment only the setenv line!

# ---------------------------------------

# ODROID-VU forced resolution

# setenv videoconfig "video=HDMI-A-1:1280x800@60"

# -----------------------------------------------

# 1920x1080 (1080P) with monitor provided EDID information. (1080p-edid)

# setenv videoconfig "video=HDMI-A-1:1920x1080@60"

# -----------------------------------------------

# 1920x1080 (1080P) without monitor data using generic information (1080p-noedi)

# setenv videoconfig "drm_kms_helper.edid_firmware=edid/1920x1080.bin"

# -----------------------------------------------

# 1280x720 (720P) with monitor provided EDID information. (720p-edid)

# setenv videoconfig "video=HDMI-A-1:1280x720@60"

# -----------------------------------------------

# 1280x720 (720P) without monitor data using generic information (720p-noedid)

# setenv videoconfig "drm_kms_helper.edid_firmware=edid/1280x720.bin" <strong> </strong>

# -----------------------------------------------

# 1024x768 without monitor data using generic information

# setenv videoconfig "drm_kms_helper.edid_firmware=edid/1024x768.bin"

# final boot args

setenv bootargs "${bootrootfs} ${videoconfig} smsc95xx.macaddr=${macaddr}"

# drm.debug=0xff

# Boot the board

boot

I actually tried a few settings in my previous attempt but unsuccessfully. Now I know that 1080p does not work in Android with my TV, so I’ll focus on the 720p settings.

Trying 720p-edid, lead to a black screen, but enabling 720p-noedid worked around the issue, and I could finally see the LXDE desktop environment on my TV. That means my TV (Panasonic TH-L39EM6T) and ODROID-XU3 Lite board have issues communicating EDID information, and it’s most probably a driver issue that needs to be fixed, but at least, if you encounter a black screen with your board, it’s worth spending some time trying all options in boot.ini.
