JmGO G1 Android “Home Theater” Projector Powered by Mstar 6A918 SoC

JmGO G1 is a neat looking Android 4.4 projector powered by Mstar 6A918 quad core Cortex A9 processor with a Mali-450MP4 GPU (same as Mstar 9810?), and featuring a Texas Instruments LED based DLP projector. It comes with USB 2.0 / 3.0 ports, Gigabit Ethernet, HDMI, AV, S/PDIF ports, and four speakers on the periphery.

jmGO_G1_Android_Projector

jmGO_G1_remote_controlTentative hardware specifications:

  • SoC – Mstar MSO6A918 Quad core ARM Cortex A9 @ 1.5GHz with an ARM Mali-450MP4 GPU.
  • System Memory – 2GB DDR3
  • Storage – 16 GB eMMC + microSD card slot
  • Projector
    • Texas Instruments DLP
    • RGB LED. Native resolution: 1280 x 800
    • 30,000 hours LED life (About 10 years @ 10 hours per day)
    • 15″ to 300″ screenI
    • Brightness – 450  Lumens
  • Video Inputs – HDMI IN, AV IN
  • Audio I/Os – Inputs HDMI, AV, coaxial S/PDIF; Output: 4x speakers
  • Connectivity – Gigabit Ethernet, 802 b/g/n Wi-Fi, Bluetooth
  • USB – 1x USB 2.0 host port, 1x USB3.0 port
  • Power Supply – 19V/4.74A
  • Dimensions – 219 mm diameter x 60 mm height
  • Weight – 1550 grams

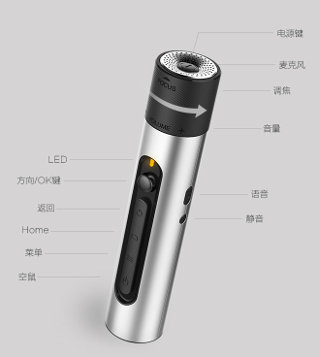

I’m not 100% sure of my specifications, as I assumed all video and audio ports are inputs, but I’d be glad to bring correction from people who can read Chinese… A  hook is available under the projector to mount it on a tripod or a wall. A simple yet innovative Wi-Fi remote control lets you adjust the projector focus, control the volume, and comes with Back/Home/Menu/Mouse/OK buttons, as well as a microphone for voice control.

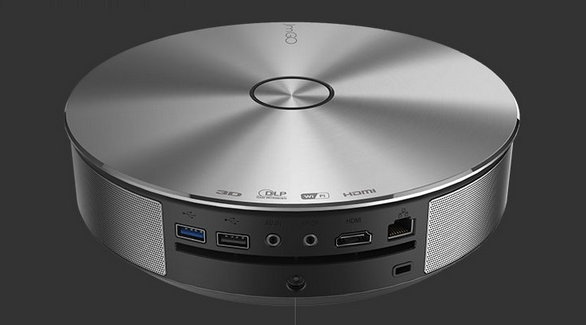

jmGO_G1_Android_Projector_rear_panel JmGO G1 costs 2399 CNY (~$392), but I could not find it for sale anywhere, and it’s for sale on Ebay for $566 + shipping. More details and pictures can be found on JmGO G1 product page (Chinese).

Via AndroidPC.es
