Codethink has just announced an ARM based server called “The BaseRock Slab” powered by Marvell ARMADA XP quad core ARMv7-A processors with 2 GB RAM and 30GB (up to 120GB) mSATA SSD Storage per node, which targets applications such as cloud computing infrastructure and native ARM build and test.

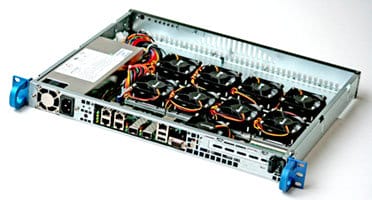

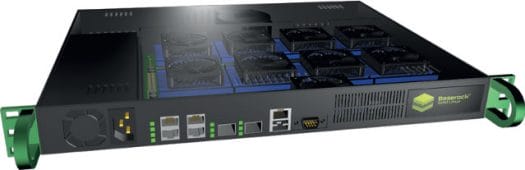

This 32 cores server comes in a 1U chassis (483mm x 44mm x 355m), is powered by a 260 PSU, integrates eight Cogent CSB1726-ArmadaXP SoM (Marvell Armada XP quad-core ARMv7-A CPUs, 1.33Ghz + 2 GB ECC DDR3 RAM) in to a carrier board featuring the following:
- 30GB (max 120GB) mSATA SSD, max 250MB/sec read/write, per SoM
- SATA port for additional dedicated storage, per SoM
- Dual 2.5Gbit/s full-duplex ethernet, trunkable into a single 5Gbit/s link
- Management SoM for remote power, fan and reset control
- Firmware upgrade via the network
The server is managed by Cogent CSB1724 SoM powered by Marvell Armada 300 (ARMv5) @ 1.6 GHz.
The company explains that their system is scalable for data center and cloud applications, and up to 76 units can be stacked in a rack to provide a 2432 cores server with no special power handling or cooling infrastructure.
The Baserock Slab supports Baserock Embedded Linux and Debian GNU/Linux, and the company is currently working on Ubuntu and Fedora ports.
The Baserock Slab ARM server can be ordered now for September delivery, according to the company website. Further details about this new ARM server are available on Baserock.com.
[Update. Here’s a video showing how everything fits together to create a 2432 core server.
Jean-Luc started CNX Software in 2010 as a part-time endeavor, before quitting his job as a software engineering manager, and starting to write daily news, and reviews full time later in 2011.
Support CNX Software! Donate via cryptocurrencies, become a Patron on Patreon, or purchase goods on Amazon or Aliexpress
How much the basic setup will going to cost roughly? in way that some rich kid tech enthusiast could be able to make it behave like his media and high bendwith internet streaming server.
Just asking 🙂 I mean why not. 😀
@max
I’m not an expert in servers, but Boston Viridis is said to cost about $1000 per node including hard drives (http://www.cnx-software.com/2012/07/10/boston-ships-viridis-arm-server-based-on-calxeda-energycore-cortex-a9-soc/), so that one could cost $8000. If that’s the case it would be for a very rich kid, and if you have lots of videos, it might not make such a good video server, as the maximum total HDD capacity would be 960 GB (120 GB x 8).
@Jean-Luc Aufranc (CNXSoft) It’ll probably be less than that as it’s made up of less custom silicon and compontry. Also note that the motherboard is standard ATX, so you can put it in any case you like (within reason), and each node also has its own normal SATA port for spinning disk.
$8000 is actually quite humm.. 😀
Updated post with interesting video about the slab.
Can’t wait to see single CPU modules with 1+ GB LAN, SATA expansion and ECC RAM for consumer prices. ATM I got a HP ProLiant MicroServer running eon (Solaris) from an USB stick in-memory, 8GB ECC RAM, a remote admin card, 4x 2TB hdd. As SSDs will get cheaper in the years ahead and one will be able to get yesterday’s 500GB SSDs for a low price on eBay, a pure solid state server without any moving parts should be possible, maybe not with 8TB, but 3TB should be sufficient for lots of FLACs and movies. Low heat, low power,… Read more »
